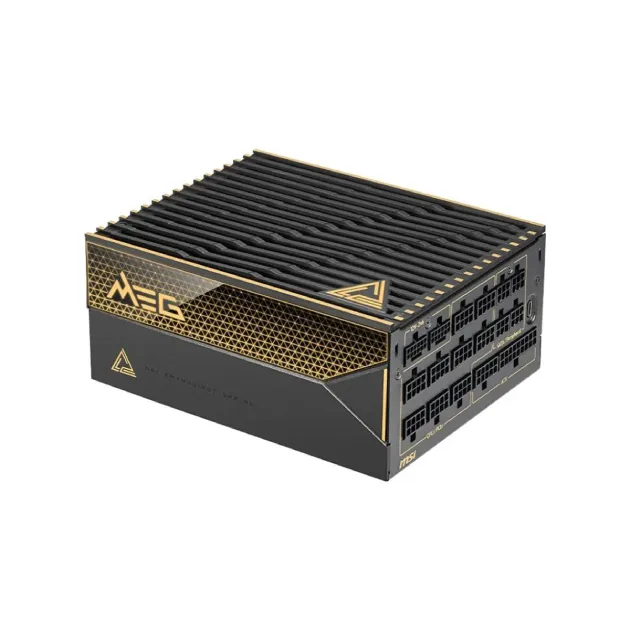

MSI MEG Ai1600T PCIe5 Power Supply

Experience unparalleled power and efficiency with the MSI MEG Ai1600T. Featuring 1600W of 80 PLUS Titanium certified power and ATX 3.1 compliance.

Specification	Details
Efficiency Rating	80 PLUS Titanium (up to 94%)
Modular	Yes (Fully Modular)
Fan Size	135 mm
Fan Bearing	Double Ball Bearing
Dimensions (D x W x H)	190 x 150 x 86 mm
PFC Type	Interleaved PFC
Input Voltage Range	100-240 V
Power Watt	1600W
Power Excursion	3840W (up to 240% of the PSU’s rated power for 100μs)
Input Frequency Range	50~60 Hz
Protection	OCP / OTP / OPP / SCP / OVP / UVP / SIP / NLO
ATX (24 pin)	1
EPS (4+4 pin)	2
PCI-E 5.1 (16 pin)	2 (600W)
PCI-E (6+2 pin)	9
SATA (15 pin)	8
PERIPHERAL (4 pin)	8
