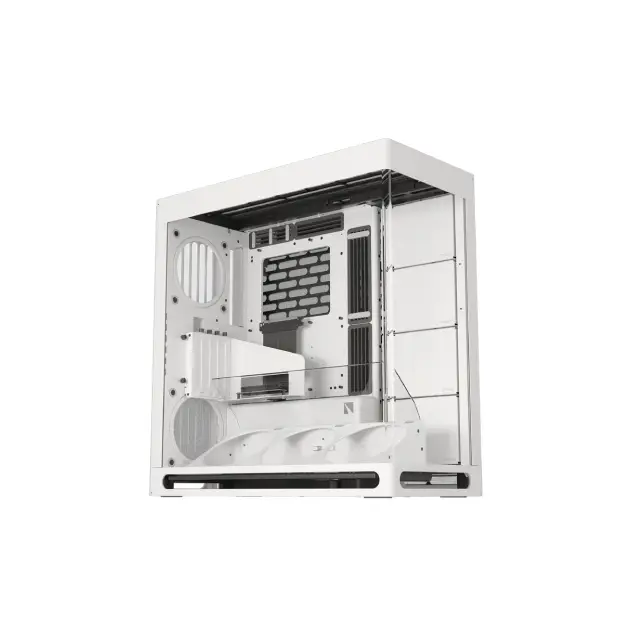

HAVN HS 420 VGPU

The HS 420 VGPU mid-tower case combines functional beauty with user-centric innovation. Designed by the HAVN team, this case is crafted to deliver superior GPU airflow, featuring a VGPU Mount Kit with a PCI Express® 5.0 riser cable. Its elegant panoramic housing, hybrid structure, optimized airflow, and smart cable management system make it the ultimate sanctuary for your gaming setup.

Description
Specification

Specifications	Descriptions
Form Factor	Mid Tower
Material	SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets
PC Case Dimensions (L x W x H)	541 x 259.5 x 547 mm
Net Weight	19 kg
Warranty	1 year
Notice	Warranty support only for orders shipped within the United States. Orders via forwarding services not supported. Please review full warranty terms for details.
Front I/O	USB 3.2 Gen 2 Type-C x1USB 3.2 Gen 1 Type-A x2Audio Jack x1Power & Reset Button x1
Motherboard Support	E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX
Expansion Slots	6 horizontal, 4 vertical
Fan Support	Max 11 fans:Top: 3 x 120 / 3 x 140 mmRight: 3 x 120 / 3 x 140 mmBottom: 3 x 140 mmRear: 2 x 120 / 2 x 140 mm (Thickness up to 30 mm)
Fan PWM Repeater	Fan Ports: 2 x PWM repeaters (12 ports total)Location: 1 x Cable Management Tray, 1 x PSU Shroud6 ports per repeater x 4-pin PWMRated Voltage: 12VSafety Current: Up to 2.6A across 6 portsPower Connector: 1 x SATA Power (12V → 2.6A max)
CPU Tower Cooler Clearance	Height: Up to 185 mm. Size depends on GPU width. CPU center to PCIe edge: ~199 mm (varies by motherboard). Liquid cooling recommended.
Liquid Cooling Support	Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM)Right: 280 / 360 / 420 mm (Thickness: 60 mm w/ GPU >317 mm, 80 mm w/ top AIO)
Graphics Card Clearance	Length: Up to 470 mmWidth: Up to 195 mm (depends on CPU cooler size). CPU center to PCIe edge: ~199 mm. Liquid cooling recommended.
Vertical GPU Support	4 SlotsPCI Express 5.0 Riser Cable Included
RAM Clearance	If fan and radiator thickness >65 mm:420 mm – 32 mm clearance360 mm – 43 mm clearance
Power Supply Support	ATXLength: Up to 220 mm (Clearance up to 290 mm)
Storage	Right Fan Mount: 4 bays (4 x 3.5” or 8 x 2.5”)Cable Management Tray: 1 bay (1 x 3.5” or 2 x 2.5”)Storage Bay Included: 4x
Internal Display Support	VESA Mounting: 75 x 75 mm / 100 x 100 mmDisplay Size: Up to 14 in.Location: Front Right Pillar
Dust Filter	Bottom: 1 (Removable)Top: 1 (Built-in)Right: 1 (Built-in)Rear Bottom: 1 (Removable)
