| Category | Specification |
|---|---|
| Model | HS 420 VGPU Edition |
| Part Number | HVN-CA-HS420-08 |
| Form Factor | Mid Tower |
| Material | SGCC sheet metal, tempered glass, ABS, Nylon, Silicon, Zinc alloy, NdFeB magnets |
| PC Case Dimensions (L x W x H) | 541 x 259.5 x 547 mm |
| Net Weight | 19 kg |
| Warranty | 1 year |
| Notice | Warranty support is only available for orders shipped within the United States. Orders via forwarding services are not supported.Please review our full warranty terms for more information. |
| Front I/O | USB 3.2 Gen 2 Type-C x1USB 3.2 Gen 1 Type-A x2Audio Jack x1Power & Reset Button x1 |
| Motherboard Support | E-ATX (Max Width 277 mm) / ATX / M-ATX / Mini-ITX |
| Expansion Slots | 6 horizontal, 4 vertical |
| Fan Support | Maximum Amount: 11Top: 3 x 120 / 3 x 140 mmRight: 3 x 120 / 3 x 140 mmBottom: 3 x 140 mmRear: 2 x 120 / 2 x 140 mm (Thickness Up to 30 mm) |
| Fan PWM Repeater | Fan Ports: 2 x PWM repeaters, 12 ports totalLocation: 1 x Cable Management Tray1 x PSU ShroudFan Connectors: 6 ports per repeater x 4-pin PWM(Connect your primary fan to the white port to control PWM signal. All other ports mirror the white port’s signal.)Fan Rated Voltage: 12VFan Safety Current: Up to 2.6A across 6 portsPower Connector: 1 x SATA PowerPower Safety Current: 1 x SATA connector power input, 12V → 2.6A (max) |
| CPU Tower Cooler Clearance | Height: Up to 185 mm. Tower cooler size depends on GPU width. CPU center to graphics card PCIe edge connector; ~199mm (varies by motherboard). Liquid cooling recommended. |
| Liquid Cooling Support | Top: 280 / 360 / 420 mm (Thickness: 65 mm, not overlapping with RAM)Right: 280 / 360 / 420 mm (Thickness: 80 mm w/ GPU >317mm, 80 mm w/ top AIO)Width: Up to 145 mm |
| Graphics Card Clearance | Length: Up to 470 mmWidth: Up to 195 mm. GPU width support depends on CPU cooler size. CPU center to graphics card PCIe edge connector: ~199mm (varies by motherboard). Liquid cooling recommended. |
| Vertical GPU Support | 4 SlotsPCI Express 5.0 Riser Cable Included |
| RAM Clearance | If the fan and radiator thickness is greater than 65 mm: 420 mm – 32 mm / 360 mm – 43 mm |
| Power Supply Support | ATXLength: Up to 220mm (Clearance – 290mm) |
| Storage | Right Fan Mount: 4 Storage Bays: 4 x 3.5” / 8 x 2.5”Cable Management Tray: 1 Storage Bay: 1 x 3.5” / 2 x 2.5”Storage Bay Included: 4x |
| Internal Display Support | VESA Mounting: 75 x 75 mm / 100 x 100 mmDisplay Size: 14 in. (Max)Location: Front Right Pillar |
| Dust Filter | Bottom: 1 (Removable)Top: 1 (Built-in)Right: 1 (Built-in)Rear Bottom: 1 (Removable) |
Gaming PC Cases

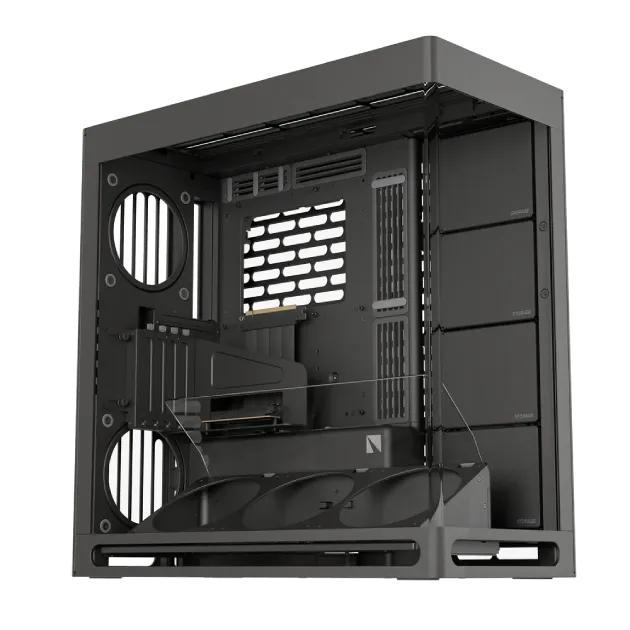

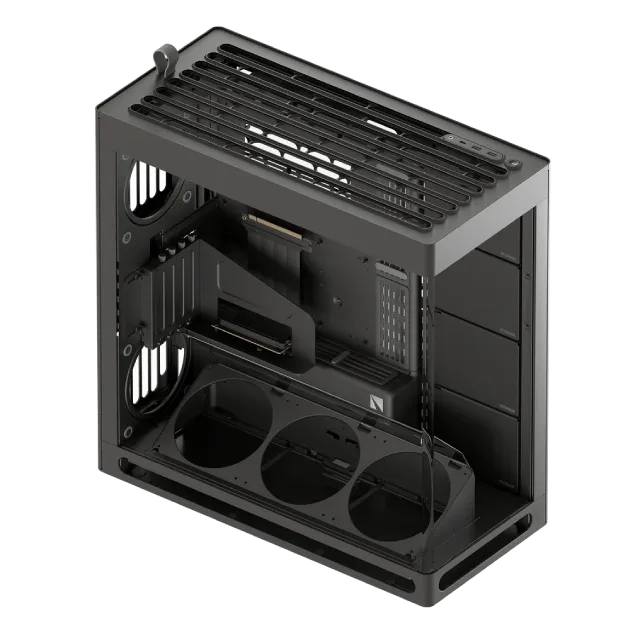

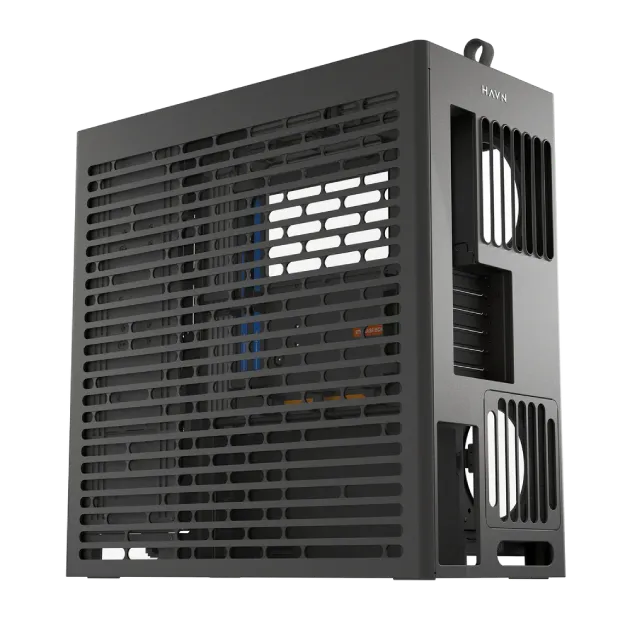

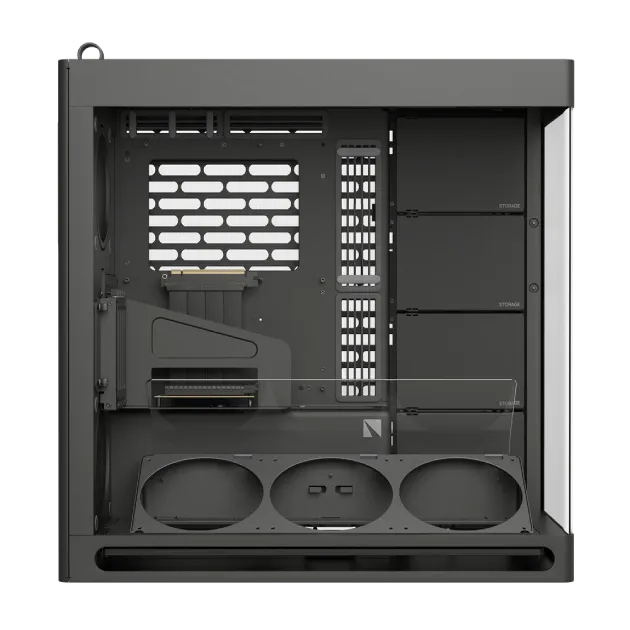

HAVN HS 420 VGPU Edition Gaming PC Case – Black Mid Tower with Vertical GPU Support
The HS 420 VGPU mid-tower case combines functional beauty with user-centric innovation. Designed by the HAVN team, this case is crafted to deliver superior GPU airflow, featuring a VGPU Mount Kit with a PCI Express® 5.0 riser cable. Its elegant panoramic housing, hybrid structure, optimized airflow, and smart cable management system make it the ultimate sanctuary for your gaming setup.
| Brand | HAVN |
|---|
