APNX V1-BK-V1 Gaming PC Case – Black Tempered Glass Mid Tower

APNX V1-BK-V1 Gaming PC Case – Black Tempered Glass Mid Tower

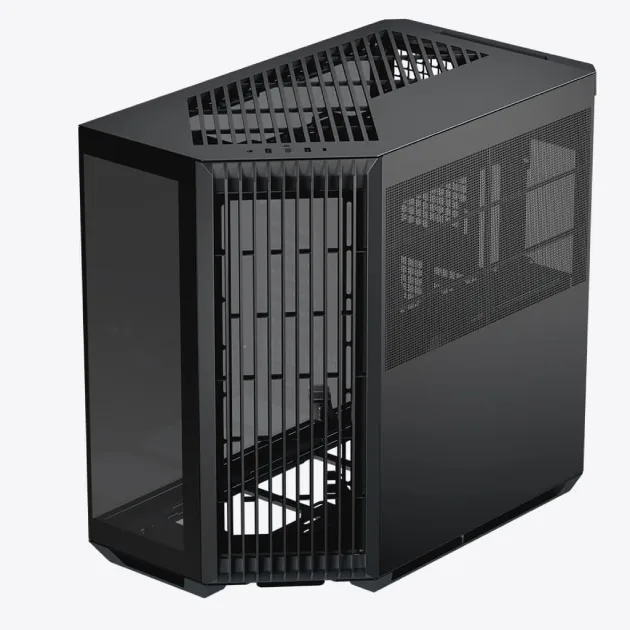

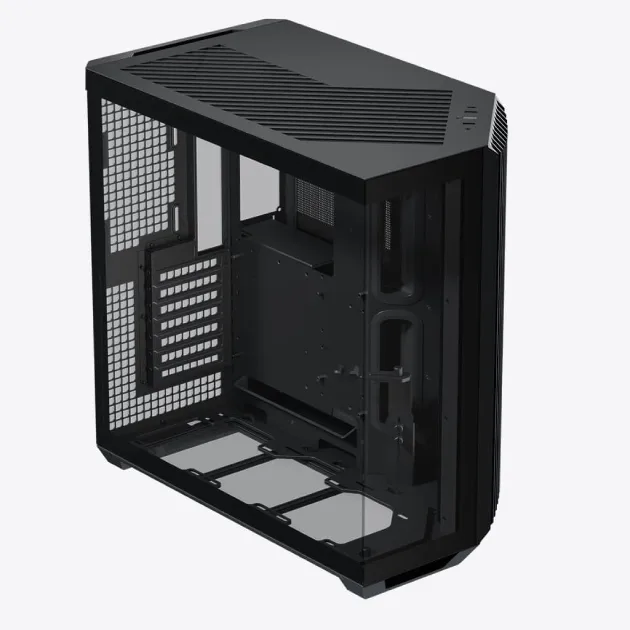

The APNX V1 mid-tower case combines customizable cooling precision with a unique 45° angular intake design, all housed within a sleek, panoramic dual-chamber structure.
Built for performance and user experience, the mechanism design offers optimized cooling options for GPU and CPU, with quick-release cooling brackets & panels for easy access, and neat & tidy cable management. Boasting a full tempered glass panoramic view and the choice of wood paneling for a refined touch, the V1 is perfect case for gamers, content creators, and PC builders seeking performance with a personality.

Description
Specification

Model	V1-BK-v1
SKU	APCM-V101003.11
Case Type	Mid Tower
Color	Black
Body Material	SGCC
Front Panel Material	ABS
Steel Thickness	0.8mm
Motherboards	ATX/Micro ATX/mini-ITX
Case Dimensions (Internal)	290 x 460 x 480mm (W x H x D)
Case Dimensions (Overall)	290 x 485.5 x 500mm (W x H x D)
3.5” Drive Bays	2 Max. (2 x 3.5”/2.5″)
2.5” Drive Bays	6 Max. (4 x 2.5”and 2 x 2.5″/3.5”)
Expansion Slots	7
GPU Clearance	Supports GPU up to 395mm (W/O radiator in the front-right position)
CPU Cooler Clearance	Supports CPU cooler up to 170mm
Air Cooling	Front-Right: 120mm x 3 or 140mm x 2 or 160mm x 2 (Max.) Top: 120mm x 3 or 140mm x 2 (Max.) Bottom: 120mm x 3 (Max.) or 140mm x 2 (Max.) Rear: 120mm x 1 (Max.)
Liquid Cooling	Front-Right:120/140/240/280/360mm Radiator (Optional) Top: 120/140/240/280/360mm Radiator (Optional) Bottom: 120/140/240/280/360 Radiator (Optional) (140/280 Radiator: When M/B is at upper position; It’s not recommended to install a liquid cooling at the bottom.) Rear: 120mm Radiator (Optional)
Filters	Top (Built-in), Front-Right (Removable), Side (Removable), Bottom (Removable)
I/O Ports	USB3.2 Gen 2×2 Type-C x 1 \| USB3.2 Gen 1 Type -A x 2 \| Audio & Mic.
Internal Cable Management Depth	90mm
Power Supply	ATX PSU (Including cables, up to 220mm) (Optional)
